How to Safely Diagnose and Replace a Dishwasher Drain Pump

Does your dishwasher still leave water in the tub after the filter, drain hose, air gap, and sink connection have been checked?

The drain pump may be damaged, internally jammed, or unable to move water even though the visible drain path is clear. Replacing it is manageable on some dishwashers, but correct diagnosis and part matching matter more than installing a pump that merely looks similar. This guide explains how to confirm a pump problem, prepare the appliance, replace the pump, and verify the repair safely.

If you need to review the earlier drain-path checks first, see this dishwasher not draining troubleshooting guide before removing any parts.

Confirm the Drain Pump Is the Remaining Suspect

A clear filter and hose do not prove that the pump has failed. The pump may still be blocked at the impeller, unable to start, electrically open, or mechanically worn.

Common clues include water remaining in the sump after the drain phase, a humming sound without water movement, repeated clicking, or no sound when draining should begin. These signs are not conclusive because wiring, controls, switches, and water-level conditions can cause similar symptoms.

A practical confirmation process is:

1. Run the dishwasher’s cancel or drain function, if available, and listen for a consistent pump sound.
2. Confirm that the hose, air gap, and sink connection are not kinked or blocked.
3. Inspect the pump inlet and impeller area for glass, labels, food debris, or other foreign material if the design allows access.
4. Check for loose wiring, corrosion, heat damage, or a connector that has partly pulled free.
5. Use the appliance’s service information to determine whether electrical testing is appropriate.

If the drain path is open and the pump receives the correct command and power but does not operate properly, pump replacement becomes more likely. If the pump never receives power, the fault may involve wiring, a control board, a door or float switch, or another part of the drain circuit.

Match the Replacement Pump Before Removing the Old One

Match the replacement by the dishwasher’s complete model number, manufacturer parts information, and the original pump’s identifying details. Do not choose by appearance alone.

Similar-looking pumps may have different connectors, mounting arrangements, outlet directions, impellers, seals, voltage requirements, or control configurations. Before ordering or installing a part, compare:

• Full model information: Record the model and, where relevant, product or serial information from the rating label. It may be on the door edge, inner frame, or side of the cabinet.
• Part number: Use the number on the old pump as supporting information. The dishwasher model and an approved parts reference are stronger compatibility checks.
• Electrical connection: The connector must match the appliance wiring. Do not modify terminals or splice wires to make another pump fit.
• Physical fit: Compare locking tabs, screw points, outlet shape, seal location, and pump orientation.
• Seal arrangement: Confirm whether the replacement includes a new gasket or requires the original sealing component.

Do not install a pump with damaged plastic, corroded terminals, a distorted seal, or an impeller that cannot move properly. If the model number is incomplete or the parts listing is unclear, confirm the application before disassembly.

The Common Mistake: Removing the Pump Before Planning Access

A common mistake is starting at the visible pump area without checking how the dishwasher is constructed. Access may require removing the lower rack, filter components, toe-kick panel, wiring connector, or an underneath retaining mechanism.

Identify the access route in the service manual or model-specific instructions first. Photograph each connector and hose position, label screws, and note the pump’s orientation before loosening it. This helps prevent forced parts, stretched wiring, and incorrectly positioned seals.

Should You Replace the Pump From Inside or Underneath?

The answer depends on the dishwasher design. Some pumps are reached from inside the tub after removing the filter or sump cover. Others are mounted below the tub and require access through the toe-kick area or by carefully pulling the appliance forward. Some designs require more extensive disassembly.

Inside access avoids moving the dishwasher but may expose the sump seal and retaining features to damage. Underneath access may provide a clearer view of the pump and wiring, but moving the appliance can affect the water line, drain hose, power cord, flooring, and anti-tip arrangement.

Before choosing an access route, check:

• Whether the pump uses a twist-lock, screws, clips, or a hose connection.
• Whether the manufacturer requires a new gasket or O-ring.
• Whether the pump can be removed without disturbing the circulation pump or sump.
• Whether the appliance must be pulled out and how its connections should be disconnected.

Do not rely on the pump’s location alone. Similar-looking dishwashers can use different procedures. If the instructions require tilting the appliance, follow the manufacturer’s method and keep it supported. Never work beneath an unsecured dishwasher.

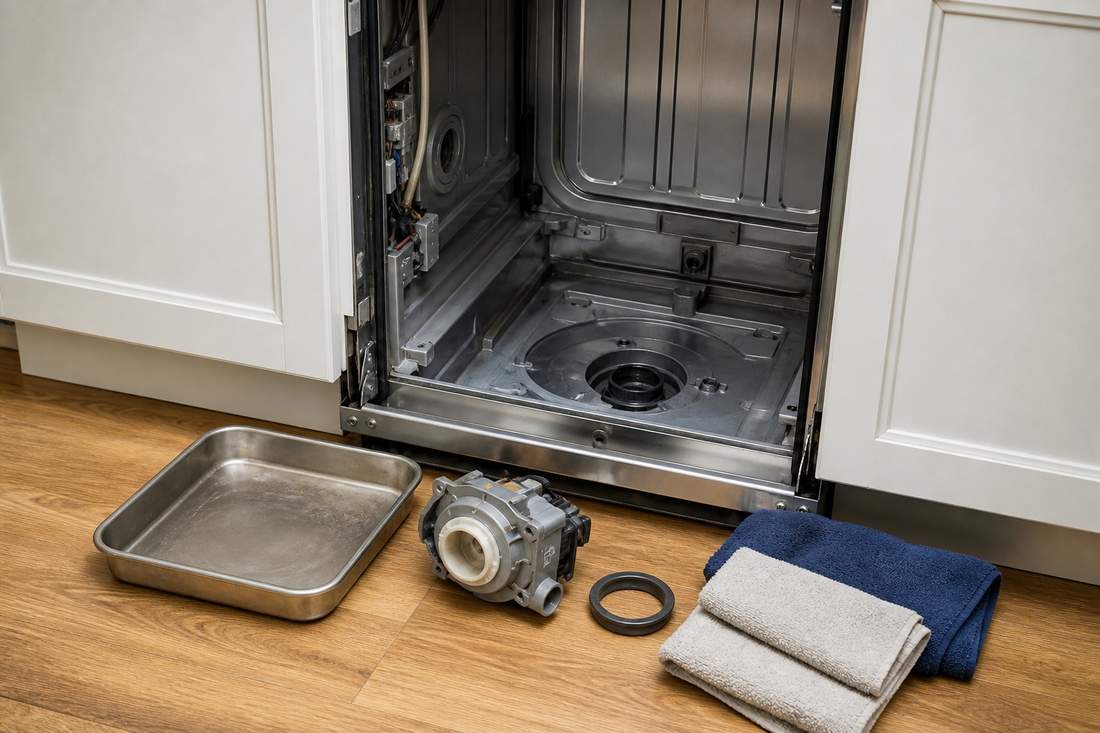

Prepare the Dishwasher Before Removing the Drain Pump

Water and electricity are both present around the pump, so make the dishwasher inactive before beginning.

1. Stop the cycle. Use the cancel function and allow a normal drain routine to finish if possible.
2. Disconnect electrical power. Unplug the dishwasher or switch off the appropriate circuit. Do not rely only on the control panel being off.
3. Shut off the water supply. Close the dishwasher’s supply valve before moving the appliance or disturbing connections.
4. Remove standing water. Use a shallow container, sponge, or suitable wet-dry method. Expect residual water in hoses.
5. Protect the floor. Place towels or a shallow pan near the work area.
6. Document the arrangement. Photograph the connector, hose routing, clamp position, and pump orientation.

Removing the old pump

Remove only the panels and components needed for access. Release the electrical connector by its locking tab rather than pulling on the wires. If a hose must be removed, use the appropriate clamp method and avoid cutting it unless the instructions call for replacement.

Depending on the design, the pump may release with a partial turn, lift out of clips, or separate after fasteners are removed. Support nearby components instead of allowing them to hang from wiring. After removal, inspect the opening for debris and check whether the old seal remained in place. A leftover gasket can prevent the replacement from seating correctly.

Balance Repair Priorities With Access and Replacement Risk

The main priorities are accurate diagnosis, electrical isolation, correct compatibility, and a leak-free seal. Speed should not outrank them.

A quick replacement may be reasonable when the model-specific procedure is simple and the pump is clearly identified. More extensive disassembly requires caution because disturbing additional hoses or sump components creates more opportunities for leaks and misrouting. Electrical resistance readings are useful only when compared with the manufacturer’s service information and taken with power disconnected.

Do not perform live voltage checks unless you are trained and equipped to do so safely. If the service documentation does not provide a clear test method, or the fault may be in the control system, professional diagnosis may be more efficient than replacing parts by elimination.

Replace the pump when the drain path is clear, the pump shows a mechanical or electrical fault consistent with the symptom, and the replacement is confirmed for the exact model. Otherwise, investigate the wiring and control side first.

Use These Compatibility and Installation Factors to Decide

Several details determine whether a drain pump replacement is likely to succeed:

• Model-specific fit: Match the appliance application, not just the general dishwasher category.
• Seal condition: A pump can operate correctly but still leak if the gasket is damaged, missing, twisted, or misplaced.
• Connector security: The plug should lock into place without loose terminals or exposed conductor strands.
• Hose routing: A pinched or sharply bent hose can restrict drainage or stress the pump outlet.
• Debris control: Fragments left near the pump inlet can obstruct the replacement.

A pump that fits physically but has the wrong connector or operating requirements is not a suitable substitute. When application information is uncertain, choose confirmation over appearance.

Install the New Pump According to Its Original Orientation

The replacement should sit in the same orientation and sealing arrangement as the original unless the manufacturer’s instructions specify otherwise. The outlet should follow the original hose route, the gasket should compress evenly, and the connector should remain accessible without straining nearby parts.

1. Clean the mating surface without scratching the plastic or leaving lint around the seal.
2. Install the specified gasket or O-ring in its proper groove. Do not add sealant unless instructed.
3. Fit the pump without forcing the locking tabs or fasteners. If it does not align, check the gasket and orientation.
4. Reconnect the hose and secure its clamp in the original position.
5. Reconnect the electrical plug until its locking feature engages.
6. Reinstall panels, filters, covers, and racks removed for access.

Before restoring power, check that no wire is trapped against a panel and that no tool or loose fastener remains in the sump or base area.

Test the Dishwasher in Stages After Replacement

If the dishwasher still leaves water behind after the new pump is installed, diagnose the result rather than repeatedly replacing pumps. Possible causes include a loose seal, incorrectly routed hose, disconnected wire, remaining obstruction, or a fault outside the pump.

1. Restore the water supply and electrical power only after all covers and connections are secure.
2. Run a short cycle or drain function while watching the pump area for leaks. Keep hands away from moving and energized components.
3. Listen for the drain phase and confirm that water exits through the intended route.
4. Stop the cycle and inspect underneath for drops, damp insulation, or water tracking from the pump seal.
5. Run a complete cycle only after the short test shows normal draining and no leaks.

A leak that appears immediately usually points to the seal, pump seating, hose connection, or a cracked component. A silent pump may indicate a connector or control problem, while a humming pump with weak drainage can suggest an obstruction or incorrectly fitted pump. Disconnect power before correcting any installation issue.

The most important steps are confirming the diagnosis, matching the exact model and part, protecting the gasket, preserving the original hose and wiring arrangement, and testing for both drainage and leaks before regular use.
