How to Replace a Washing Machine Drain Pump Safely
Cleaning the filter is often the first step when a washing machine leaves water in the drum. If the external drain hose and household drain have also been checked, inspect the pump—but do not replace it before confirming the fault. An incorrect pump can waste time and create a compatibility problem.
This guide explains how to decide whether a drain pump replacement is appropriate, identify the correct part, and remove, install, clean, store, and test it safely. For broader checks involving the hose, household drain, or pump symptoms, see why your washing machine still won’t drain after cleaning the filter.
Why a Failed Drain Pump Stops the Machine From Draining
A drain pump moves water from the washer’s sump or filter housing into the drain hose. If its impeller is jammed, damaged, electrically faulty, or unable to turn freely, water may remain in the drum even after the filter has been cleaned.
Not every no-drain problem requires a new pump. First isolate the appliance from power, remove accessible obstructions, and confirm that the external drainage path is clear. Replacement becomes more reasonable when the washer still will not drain and the pump shows a clear mechanical or electrical fault.
Confirm the Pump Is the Likely Fault Before Ordering
Diagnosis should narrow the problem instead of relying on one symptom. A washer that hums, stops with water inside, leaks near the pump, or produces no pump activity may have a pump problem, but wiring, controls, blockages, and hose connections can cause similar symptoms.
What to inspect first
Unplug the washer before opening an access panel. If a cycle has just ended, allow hot water to cool. Drain residual water through the filter access or emergency drain arrangement, if provided, using a shallow container and towels.
With access to the pump, check for an object blocking the impeller, a cracked housing, leaks, loose wiring, or a disconnected plug. Do not force the impeller or probe deeply into the pump. A small obstruction may be removable, while a damaged housing or pump that remains inoperative after cleaning points more strongly toward replacement.
Electrical testing must follow the procedure for the specific appliance and pump. If you lack the service information, tools, or experience to test circuits safely, stop at the visual inspection and contact a qualified appliance technician.
Choose a Compatible Replacement Pump, Not Just a Similar-Looking One
Drain pumps that look alike can differ in mounting, connector style, hose layout, voltage, motor design, or control compatibility. Identify the washer by its full model information, then compare the replacement with the existing part and manufacturer’s parts information when available.
Record the model details before removing anything. Photograph the pump from several angles, including its connector, mounting points, and hose connections. The old pump’s part number can help, but it should not be the only check if the washer has had previous repairs.
Use this decision order:
- Model compatibility: Match the exact washer model or an explicitly listed compatible range.
- Electrical details: Confirm that the replacement meets the appliance specification.
- Physical fit: Compare mounting holes, locking tabs, pump orientation, and inlet and outlet positions.
- Connections: The electrical plug and hoses must fit without forcing, cutting, or improvised adapters.
- Related parts: Inspect clamps, seals, hoses, and wiring while the pump is accessible.
A universal-looking part is not automatically a universal replacement. If any essential detail is uncertain, pause before ordering.
Prepare the Washer and Remove the Old Pump
Access varies by washer design. The pump may be reached from the front, underneath, or through a rear panel, so the appliance’s service instructions should take priority over a generic sequence.
Move the washer only as far as necessary and keep it stable. Disconnect the power cord, turn off the water supply if moving the appliance requires it, and position the drain hose so it cannot spill. The control panel being switched off does not prove that the appliance is electrically isolated.

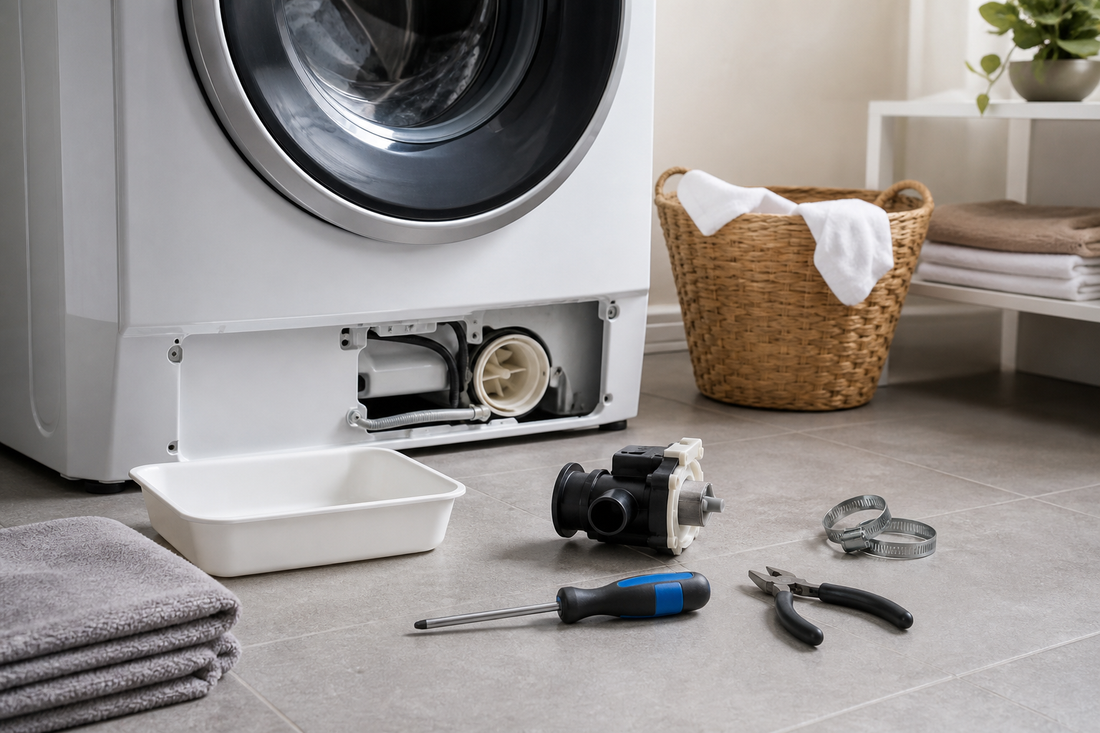

Place towels and a low container beneath the work area. Water can remain in the sump, filter housing, and hose even when the drum appears empty. Photograph or label each connection before removal.
Release hose clamps carefully and twist hoses free instead of pulling sharply. Disconnect the electrical plug by its connector, not its wires. Remove the pump’s screws, clips, or twist-lock fitting as specified for the appliance, and keep the fasteners together.
After removal, inspect the pump inlet and connected hose for debris. Installing a new pump without clearing an obstruction can cause the same failure again. Clean accessible surfaces with a suitable cloth, keeping water and unsuitable cleaners away from electrical components.
Decide Between a Complete Pump Assembly and a Smaller Repair
Replacement choices generally include a complete drain pump assembly or a smaller component designed for a particular pump. The correct option depends on the damaged part and what the appliance manufacturer or parts information supports.
| Option | When it may fit | Trade-off |
|---|---|---|
| Complete pump assembly | The motor, housing, impeller, or mounting arrangement is damaged, or the assembly is the supported replacement. | Replaces more of the assembly but reduces uncertainty about fitting separate components. |
| Individual component | The design supports that repair and the remaining housing and connections are sound. | Requires careful matching and reassembly. |
| Professional repair | The fault is uncertain, access is difficult, or electrical diagnosis is outside your skills. | Adds service cost but avoids unsafe testing or incorrect installation. |
Consider hoses, clamps, seals, and connectors at the same time. A stretched clamp or damaged seal can cause a leak even when the pump is correct. The immediate priority is a part that matches the model, connections, and mounting points; the longer-term priority is replacing visibly damaged related parts.
Installation Checklist for the New Drain Pump
Before closing the washer, check the following while the pump remains accessible:
- Compare the new pump with the old one before fitting it.
- Clean hose ends and the pump inlet without damaging sealing surfaces.
- Fit hoses fully and position clamps securely.
- Reconnect every electrical plug and route wires away from moving parts.
- Secure the pump with the correct screws, clips, or locking arrangement.
- Remove all towels, tools, loose wires, and fasteners from the access area.
Do not force a connector or mounting point. Resistance may indicate the wrong orientation, an incompatible part, or a trapped hose.
Use the Original Installation as Your Reference Point
Reproduce the original routing and connection layout while replacing only the failed part. Hoses need secure seals, wires need protection from movement, and the pump must sit in the position intended by the appliance design.
Match each hose to the correct port, return clamps to secure positions, and keep wiring away from the pump, panels, belts, and other moving components. Wipe residual water from the pump area before refitting the access panel.
If storing the old or spare pump, keep it dry and protected, with its model and part information attached. Do not leave it where its connector, seals, or housing can be crushed or contaminated.
How to Test the Replacement Pump After Installation
Quick answer: Reassemble the appliance enough for safe operation, reconnect utilities, run a short drain or rinse-and-drain program, and check both drainage and leaks. If the washer still does not drain, stop instead of repeatedly running full cycles.
Before restoring power, confirm that the pump is secured, hoses are connected, the filter is correctly refitted, and required access panels are in place. Keep the floor visible so leaks are easy to identify. Follow the appliance instructions for any service mode or drain test because controls vary by model.
During the first test, listen for unusual noises and watch the pump area as water enters and leaves the system. Inspect for seepage after draining because a loose clamp may leak only while the pump operates.
If water remains in the drum, do not assume the new pump is defective. Recheck the filter seating, hose routing, pump connector, household drain, and exact replacement part. A control or wiring fault, or an obstruction farther along the drainage path, may remain. If energized testing is required or the cause is uncertain, stop DIY work and arrange qualified service.
Before normal use, verify that the pump is model-compatible, every hose and connector is secure, the access area is dry, and a controlled drain test finishes without leakage or unusual operation.
