How to Repair a Window Screen: Mesh, Spline, and Frame Replacement

A damaged window screen does not always need to be replaced as a complete unit. A small tear may need only a patch, while loose mesh, brittle spline, or a twisted frame can require a more extensive repair.

The key is identifying which component failed before removing anything. This guide explains how to inspect the screen, choose between repair and replacement, and replace the mesh, spline, or entire frame without creating new problems.

Start With the Damage, Not the Replacement Part

Visible damage does not automatically mean the whole screen is finished. In many cases, the frame remains usable and only the mesh or retaining spline needs attention. Replacing fewer components can reduce cost, preserve the existing fit, and avoid compatibility problems.

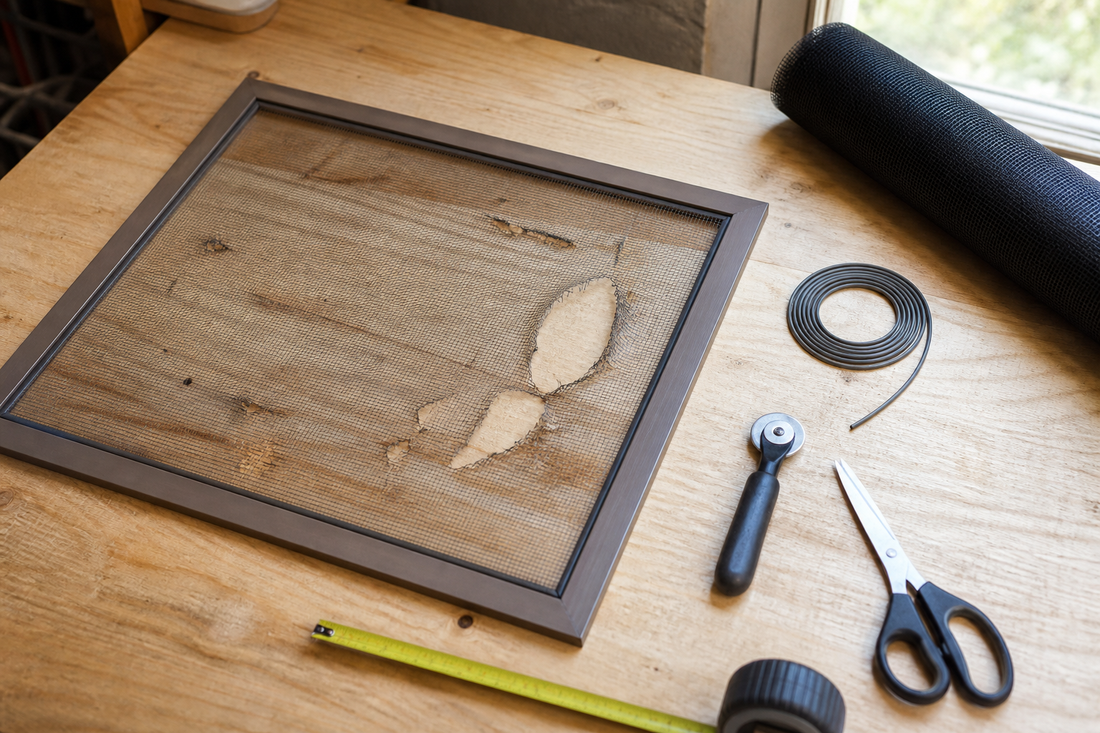

Begin with a clean, well-lit inspection. Look across the screen from several angles rather than checking only the area where you noticed a hole. A small tear may be isolated, but stretched mesh, gaps along the frame, or a corner that no longer sits squarely can indicate a broader issue.

Which symptoms justify replacement?

A patch is suited to a small, localized opening where the surrounding mesh is still tight and the frame has not shifted. Replace the mesh when tears extend in multiple directions, the material is badly stretched, or damage is spread across the panel. Replace the spline when it has pulled out, hardened, flattened, or no longer holds the mesh securely.

A frame may need replacement when it is bent, cracked, badly corroded, or too distorted to sit correctly in the window track. A loose corner may be repairable, but forcing it back into shape can leave the panel out of square.

If you discovered the damage while cleaning, pause before applying more pressure. The earlier guide on cleaning window screens without removing them explains why loose mesh, bent frames, and separated spline are signs to stop cleaning and inspect the screen more closely.

Why Screen Repairs Go Wrong Before They Begin

A common mistake is ordering mesh or spline before measuring the screen and identifying its construction. Replacement materials can look interchangeable, but the frame channel, spline size, mesh type, and finished panel dimensions all affect whether the repair will hold and fit afterward.

Do not treat a frame that is out of square as if it only needs tighter mesh. Pulling replacement mesh harder may temporarily hide a crooked corner, but it can bow the frame and make installation uneven. The frame provides the shape, the spline locks the mesh, and the mesh must be tensioned without distortion.

Diagnose the screen in this order:

• Check whether the frame is straight, intact, and square.
• Inspect the channel for dirt, damage, or sections that cannot retain spline.
• Examine the spline for brittleness, stretching, flattening, or separation.
• Assess whether the mesh is locally torn or broadly weakened.
• Measure the panel and identify the existing mesh and spline before purchasing replacements.

The goal is an even, stable fit—not the maximum possible tightness. Excessive tension can bow a lightweight frame, while insufficient tension leaves wrinkles and loose areas.

How to Replace Window Screen Mesh

For a sound frame, replace the mesh as follows:

1. Remove the screen panel and place it on a flat, protected work surface.
2. Lift the old spline from the frame channel and remove the damaged mesh.
3. Clean loose debris from the channel without widening or damaging it.
4. Lay replacement mesh over the frame with enough material extending beyond each edge.
5. Press the spline into the channel gradually, working around the frame while keeping the mesh aligned.
6. Check for wrinkles, bowing, and shifted edges before fully seating the spline.
7. Trim excess mesh close to the outside of the channel.
8. Reinstall the screen and verify that it sits evenly in its track.

Work slowly at the corners. Misalignment becomes most obvious there, and correcting the mesh before the spline is fully seated is easier than removing a completed edge.

How to patch a small screen tear

Patch the mesh only when the damage is localized and the surrounding material is still tight. A patch will not correct stretched mesh, a failing edge, or a frame that has changed shape.

1. Remove the screen if possible, clean around the tear, and let the mesh dry.
2. Trim loose strands and ragged edges with sharp scissors without cutting sound mesh.
3. Cut compatible replacement mesh large enough to overlap the opening on all sides. Rounded corners can reduce snagging and lifting.
4. Position the patch in the original mesh orientation. Secure it with a compatible screen-repair adhesive or a patch designed to attach mechanically.
5. Press it down without pulling the surrounding screen out of shape, then allow adhesive or coating to cure as directed.
6. Check both sides and confirm that the patch does not interfere with the frame, track, or moving window parts.

A patch is a localized repair, not a way to reinforce an entire weakened panel. If the surrounding mesh is brittle, loose, or distorted, replacing the mesh usually produces a more consistent result.

What Usually Causes Loose Mesh, Failed Spline, and Bent Frames?

Mesh can tear through contact with objects, pets, repeated handling, or pressure during cleaning. Once a tear begins, pulling or brushing across it may enlarge the opening and distort the surrounding weave.

Spline may become hard or less flexible over time, pull out of the channel, or lose its ability to hold the mesh evenly. A screen can therefore appear to have a mesh problem when the underlying issue is that the retaining material no longer grips the channel.

Frames are commonly affected by impact, improper storage, or repeated removal at an angle. A bent frame changes the geometry of the panel, so new mesh and spline may not produce a durable repair if the frame cannot remain square.

Dust and old material in the channel can also prevent spline from seating fully. Cleaning the channel is therefore part of component replacement, not merely a finishing step.

Patch, Re-Mesh, or Replace the Entire Frame?

A patch is the least invasive option, but it is limited to localized damage. It makes sense when the surrounding mesh remains stable and appearance is not the primary concern. Patching a broad or repeatedly damaged area usually leaves an uneven result.

Re-meshing preserves the existing frame and addresses widespread mesh damage. It is the logical middle option when the frame is straight, structurally sound, and able to retain spline across the channel.

Replacing the complete screen assembly may be more practical when the frame is distorted, cracked, or incompatible with available repair materials. The replacement must match the opening, track, corner arrangement, and retention features used by the window.

How to replace a damaged screen frame

Replace the frame when it cannot stay square, hold spline, or sit naturally in the window track. If only a corner joint has separated and the rails are straight, compatible corner keys may allow reassembly. A cracked or badly distorted rail is not a good candidate for being forced back into shape.

1. Remove the screen and photograph the corners, tabs, clips, handles, and track orientation.
2. Measure the old panel and, where practical, the opening. Record outside dimensions and hardware positions.
3. Remove the old spline and mesh, then separate the frame components carefully. Keep reusable corner keys matched to their original rails.
4. Prepare replacement rails and corner pieces that match the original profile and retention arrangement.
5. Assemble the rails loosely, check the diagonal measurements, and adjust the joints until the frame is square.
6. Install new mesh and spline with gradual, even tension. The frame should remain flat rather than being pulled into shape by the mesh.
7. Trim the mesh, reinstall hardware, and test the finished panel in the opening before applying force to the track or retainers.

If the replacement frame cannot match the original profile or hardware arrangement, replacing the complete screen panel is usually more reliable.

How to replace a complete screen panel

Treat the old screen as a template rather than assuming a visually similar panel will fit. Measure the finished panel, note which side faces the room or exterior, and photograph all retention features.

1. Remove the old panel without bending it further, and inspect the window track for debris or damage.
2. Compare the replacement panel's dimensions, frame profile, corner arrangement, clips, tabs, and handle position with the original.
3. Place the new panel into the correct track or opening, engaging the upper or lower edge as the window design requires.
4. Seat the remaining edge evenly and engage the retainers without forcing the frame. If it binds, check orientation and dimensions rather than bending it.
5. Operate the window or screen hardware carefully and confirm that the panel remains secure, aligned, and removable.

How Do You Know if the Spline Needs Replacing?

Replace the spline when it no longer holds the mesh consistently or shows physical deterioration. If it pulls out easily, feels brittle, has flattened areas, or has stretched enough to leave gaps, reusing it can undermine a careful mesh repair.

Measure the existing spline and inspect the channel before selecting a replacement. A part that is too small may not grip securely, while one that is too large can make installation difficult or distort the frame. Exact compatibility depends on the frame design and channel dimensions.

How to replace screen spline

1. Lay the screen flat and lift an end of the old spline with a blunt pick or similar tool that will not cut the frame or mesh.
2. Pull the spline out gradually and remove the old mesh if necessary. Avoid prying sideways, since widening the channel can prevent the new spline from gripping.
3. Clear dust, fragments, and hardened material from the channel. Inspect for crushed or damaged sections.
4. Use an intact section of old spline as a size reference, then select a replacement compatible with the channel and mesh thickness.
5. Lay the mesh over the frame and start the new spline at a corner or another location recommended for the frame. Use a spline roller in short, controlled passes.
6. Work around the frame while keeping the mesh straight and lightly tensioned. Do not stretch the spline to make it reach.
7. At the final section, confirm the mesh has not shifted, seat the remaining spline, and trim the excess.

If the new spline repeatedly rises out of one section, stop and recheck the channel for debris or damage. Confirm that the spline size, mesh thickness, and frame orientation are compatible rather than pressing harder.

Pre-Repair Checklist for a Better Fit

Before removing the old material, record the information that will control the repair:

• Measure the existing screen panel and note how it sits in the opening.
• Photograph corners, clips, tabs, and track orientation.
• Check the frame for bends, cracks, twists, and loose joints.
• Inspect the spline channel for damage and packed debris.
• Identify whether the mesh is fiberglass, metal, or another material.

These notes are especially useful when similar-looking screens use different dimensions or retention details.

Why a Screen Can Look Fine on the Workbench but Fail in the Window

A repaired screen may appear acceptable while lying flat but fit poorly once returned to the opening. Installation can reveal a twisted frame, an edge that is not fully seated, or tension that causes the panel to bow.

Check the screen from inside and outside where possible, confirm that retaining features engage correctly, and avoid forcing a panel that does not settle naturally. If the screen is difficult to reach or requires unusual disassembly, stop rather than risk dropping the frame or damaging the window components.

What Maintenance Can Prevent Future Screen Damage?

Handle the screen by its frame rather than pressing against the mesh. During cleaning, use light contact and stop if the mesh shifts, spline lifts, or the frame flexes. Store removed screens flat and inspect the edges periodically for separated sections, loose corners, or small deformations.

When Is Professional Help the Better Choice?

A simple removable panel with a sound frame is usually suitable for careful component repair. A screen that is difficult to access, part of a specialized window system, badly distorted, or connected to damaged surrounding hardware deserves a more cautious assessment. If the replacement panel does not sit securely or the window itself appears affected, do not use the screen repair to force everything back into alignment.

Make the Repair Decision Before You Remove the Screen

Prioritize structural condition first, component compatibility second, and appearance third. New mesh cannot compensate for a failing frame, and fresh spline cannot solve a damaged channel. Patching saves effort when the defect is truly local; re-meshing makes sense when the frame remains sound; full replacement is justified when the assembly cannot reliably hold its shape.

Before you start, photograph the original installation, measure the panel, inspect the frame and channel, and choose the smallest repair that will restore a secure fit without forcing damaged parts to work.
